Nitrogen Dioxide (NO2)
Signal Scientech’s Nitrogen Dioxide gas analysers are designed for monitoring stack emissions, engine exhaust, ambient air monitoring and gas manufacturing applications.
FTA Flammability Analyzer
The SOLAREx Series LEL Concentration detector is a highly integrated, in-line LEL measuring instrument that allows the analyzer to continuously measure the low explosion limit of the exhaust gas from 0 to 100%LEL.
- 0 to 100% Low Explosive Limit (LEL)
- Measurement accuracy ±2% LEL
- Zero drift < 1%/30day
- Range drift (sensitivity) ≤ ±2%/year
- Response time < 1 second

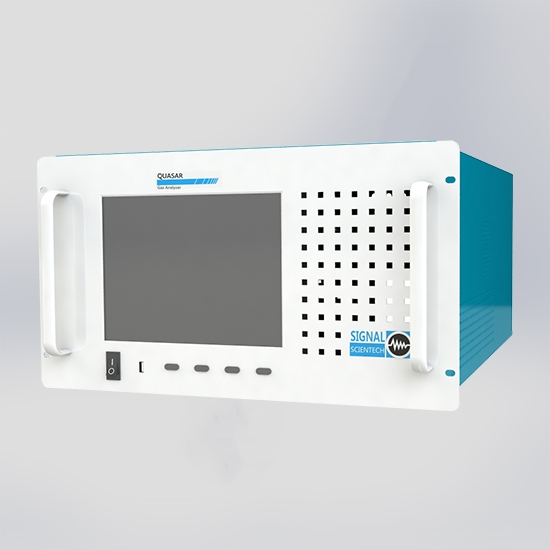

QUASAR
Chemiluminescent Detector (CLD) NOX analysers for NO/NO2/NOx measurement in engine emissions, combustion studies, process plant, Emission monitoring and medical gas production.
- VERY LOW QUENCHING FROM CO2 AND H2O
- ELECTRONIC PROPORTIONAL FLOW CONTROLLERS
- SPECIAL OZONE GENERATOR USES AIR AS FEED GAS
- LONG LIFE NOX CONVERTER (5 YEARS)
FID Flammability Analyzer
SOLAREx681 Flammability Analyzer is a highly integrated, in-line LEL measuring instrument with a hydrogen flame ion (FID) monitoring instrument that ensures the analyzer continuously measures the low explosion limit of the exhaust gas, a response time of < 1 second, and a measurement range of 0 to 100% LEL.
- Measuring accuracy: ±2% of measuring range
- Linearity: ≤1%
- Zero drift: ≤2%
- Range drift (sensitivity) : ≤2%
- Response time: ＜1S
