Flame Temperature Analysis (FTA)
LEL Combustible Gas detector is a special instrument designed to detect the Lower Explosive Limit (LEL), which can quickly and accurately monitor the concentration of combustible gas in the air and issue an alarm in time to ensure the safety of the production site.
FTA combustible gas analyzer is an instrument that can directly measure the lower explosive limit of mixed gas, with rapid response and short response time (can be less than 1s). It can be directly installed on the sample pipeline, and it needs to be equipped with a combustion booster module in anoxic environment. It is understood that the SOLAREx series of FTA combustible gas analyzers developed by the Signal Scientech Group LTD are widely used in the petrochemical industry and have been highly recognized by the owners.
Before the VOCs combustion treatment, FTA combustible gas analyzer plays an important role, it can monitor the combustible gas concentration in VOCs in real time, and effectively avoid the explosion accident of VOCs entering the combustion chamber.
FTA Flammability Analyzer

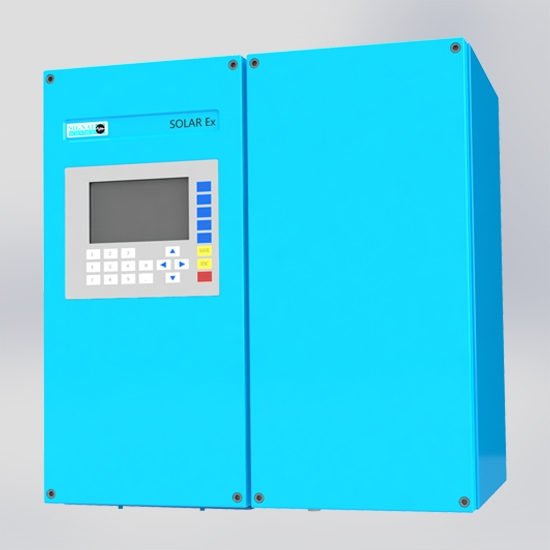

The SOLAREx Series LEL Concentration detector is a highly integrated, in-line LEL measuring instrument that allows the analyzer to continuously measure the low explosion limit of the exhaust gas from 0 to 100%LEL.
- 0 to 100% Low Explosive Limit (LEL)
- Measurement accuracy ±2% LEL
- Zero drift < 1%/30day
- Range drift (sensitivity) ≤ ±2%/year
- Response time < 1 second
