3200 MINIFID – Portable heated FID VOC analyser
Portable heated Flame Ionisation Detector (FID) VOC analyser for the discontinuous measurement of total hydrocarbons (VOCs). in stationary source emissions. Typical applications include the emissions testing of solvent-using and combustion processes, engine emissions , VOC abatement systems.
PRODUCT DESCRIPTION

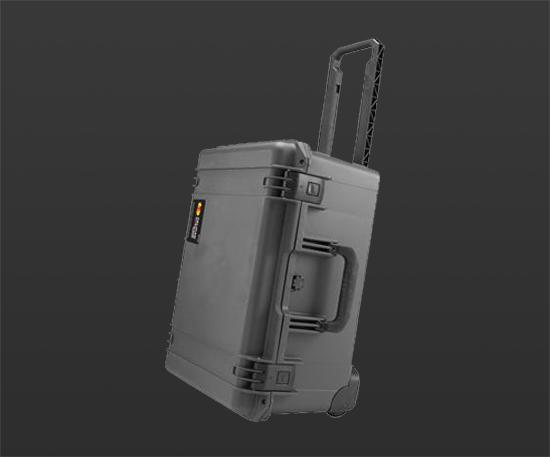

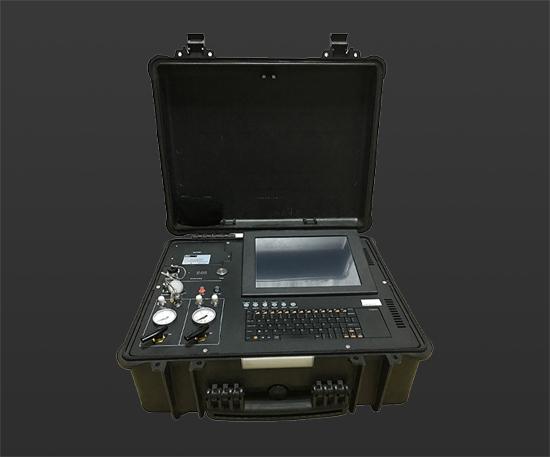

The 3200 MINI FID Portable heated FID VOC analyser is a small, self contained, and fully portable analyser. It is equally convenient for use on the laboratory bench or as a portable on-site measurement tool. This portable FID features the same detection system as the S4 Solar range of FIDs. It is supplied with a 5m heated sample line and built-in controller as standard. The bottle rack may be detached for use with standard, full sized gas cylinders.
- KEY FEATURES
- TECHNICAL SPECIFICATION
- DOCUMENTATION
- APPLICATIONS
- GASES SENSED
- OPTIONAL CONFIGURATIONS
Rugged & portable
Proven in the field
Fast speed of response
Fully heated to 191°C
Built-in datalogger (Optional)
0-10ppm to 10,000 ppm (4 ranges)
High Range option 0-10%
110V AC 50/60 Hz or 220V AC 50/60Hz
Built in Heated Line Controller (5m or 10m line option)
Optional Non-Methane Cutter (see datasheet link below)
2 year warranty
The Model 3010 Mini FID analyser is available with readings displayed in mg/m3 and with certi!ed measuring ranges of 0-15/30 and 500 mg/m3. Alternatively, in ppm with the measuring ranges of: 0-10, 0-50, 0-100, 0-500, 0-1000, 0-5000, 0-10,000ppm. Or 0-0.01, 0-0.5, 0-0.1, 0-0.5, 0-1, 0-5, 0-10%. Power 110V AC. 500 watts. Fuel set for H2He. Internal sampling pump. Internal burner air supply pump with activated carbon scrubber. 0-10V DC output. Fuel shut off- safety feature. Sampling inhibition until set temperature achieved
Boiler and Combustion Performance
Process Emission Monitoring
Automotive
Research and Test
Methane (with optional cutter)
Non-methane (with optional cutter)
Total Hydrocarbons
For low level readings, such as from waste incinerators for example, a catalytic air purifier is available which purifies the air even more efficiently than activated carbon. This version is known as the MINIFID PURE.
