SOLAREx681 is a cost-effective hydrogen flame ion (FID) monitoring instrument, when organic matter passes through the detector, there will be ions in the flame, under the action of polarization voltage, the current between the nozzle and the collector will increase, the current signal can be detected and recorded to obtain the corresponding LEL data. General organic compounds have a response on the FID, and the response time is less than 1 second. Generally, the larger the molecular weight, the higher the sensitivity, and the vast majority of organic matter has a good response on FID.

Analyzer design

The SOLAREx681 Flammability Analyzer is a highly integrated, in-line LEL measuring instrument with a heating monitoring chamber and a control unit that allows the analyzer to continuously measure the low explosion limit of exhaust gases in the 0-100% LEL range. SIGNAL SCIENTECH designs the LEL analyzer using an advanced and unique measurement principle that directly measures the combustible content of the sample to obtain LEL data, ensuring measurement accuracy and linearity.

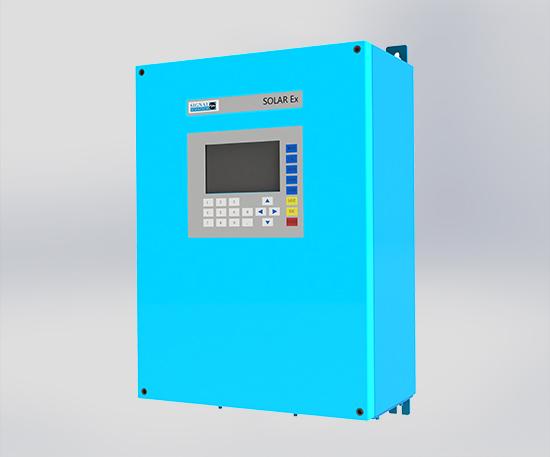

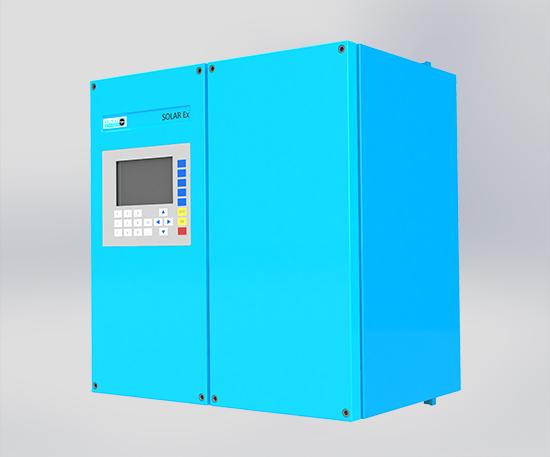

SOLAREx681 flammability analyzer

The SOLAREx681 Flammability Analyzer is a highly integrated, in-line LEL measuring instrument with a hydrogen flame ion (FID) monitoring instrument that ensures the analyzer continuously measures the low explosion limit of the exhaust gas, a response time of < 1 second, and a measurement range of 0 to 100% LEL.

? Range: up to 100% Low Explosive limit (LEL)

? Operating temperature: Sensor is heated to 220°C

? Measurement accuracy: ≤ ±2% F.S

? Repeatability: ≤ ±1%

? Linearity error: ≤ 1%

? Zero drift: ≤ ±1% /30 days

? Range drift (sensitivity) : ≤ ±2% / year

? Response time: < 1 second

? Gas: 99.999%H2

? Gas pressure: 30psig

? Gas consumption: 60L hydrogen per day

? Compressed air: 40Psig, regular clean clean air

? Compressed air consumption: 24L per minute

? Humidity range: 0% to 100% relative humidity

? Rated voltage: 110-240VAC, 50/60Hz

? Exhaust gas treatment device (RTO/RCO/TO and other incinerators) inlet and outlet gas concentration monitoring

? Measurement of total hydrocarbon in industrial process gases

? Monitoring of total hydrocarbon content in liquid oxygen of air separation unit

? Real-time monitoring of total hydrocarbons (or other organic matter) in the air of workshops, plant areas, factory boundaries, and ambient air

? Real-time monitoring of organic concentration at the discharge ports of catalytic, biological and activated carbon treatment units

? Low explosive limit monitoring and warning for solvent-saturated air
